Chapter 2 AO (Gravel)

Adventure! We all love it, we all seek it, but having the right tool for the job means that adventure can mean different things to different people. The AO is the Swiss Army knife of the Gravel genre. AO means “Earth” in Maori and New Zealand’s rugged landscape became the brief in developing one of the most versatile Gravel frames in the market.

Each year hundreds of adventurers embark on the Tour of Aotearoa, a 3,000km race from the tip of the North Island to the southernmost part of the South Island. Along the way, competitors will traverse some of the most spectacular and rough roads and terrains.

The AO has been specially designed to excel in all the variable conditions. With 42mm tire clearance with 700C wheels and the ability to accept 650B wheels at 47mm tire clearance, the AO can be fitted with 5 water bottles, dropper post, panniers and mudguards making it an adventurer’s perfect multi-tool.

Whether you are racing fast gravel events or long distance brevets the AO’s ability to adjust its rear centre by up to 15mm will let you adjust its agility levels to suit your every need and desire, including running road tires for that one bike does it all quiver killer.

Details

• Carbon:
• Toray® T700, T800 & 3K Directional Carbon
• Frame 5 Sizes:
• XS, S, M, L & XL
• Fork 2 Sizes:
• XS, S, M (55mm offset) and L, XL (50mm offset)
• Frame Weight:
• 1,180g Size M +/- 3%
• Fork Weight:
• 479g Uncut +/- 3%
• Seatpost Size:
• 31.6 Diameter
• Headset:
• CHAPTER2 Tapered 1-1/8” – 1.5”
• BB:
• BSA Threaded English
• Electronic Shifting:
• SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
• Battery Type:
• Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible
• Tire Clearance:
• 42mm (700c) & 47mm (650B)
• Brake Type:
• Disc Only
• Disc Thru-Axle Spec:
• Flat Mount FR 12x100mm, RR 12x142mm, E-Thru M12x1.5mm
• Safety Standard:
• EN ISO 4210:2014

SIZE GUIDE

Contact a C2 expert

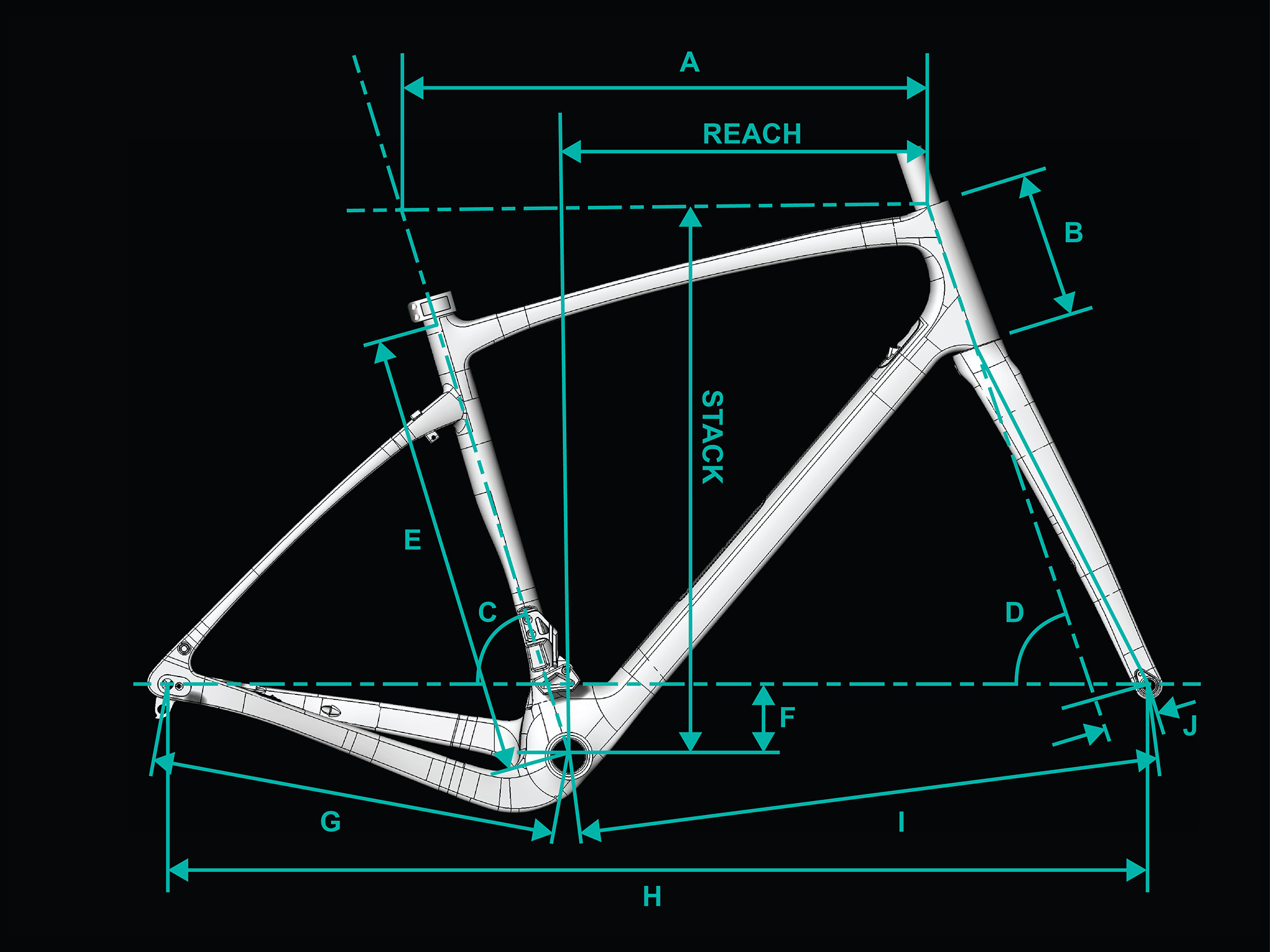

FRAME GEOMETRY

Note:

All dimensions are in mm unless otherwise noted

SIZE	XS	S	M	L	XL
Stack	521	548	576	605	634
Reach	355	366	377	388	399
A. Top Tube	509	528	547	567	587
B. Head Tube	105	130	155	179	209
C. Seat Tube Angle	73.5°	73.5°	73.5°	73.5°	73.5°
D. Head Tube Angle	69°	70°	71°	72°	72°
E. Seat Tube	460	480	500	530	560
F. BB Drop	74	74	74	74	74
G. Rear Centre	420+/-7.5	420+/-7.5	420+/-7.5	420+/-7.5	420+/-7.5
H. Wheelbase	998	1010	1021	1026	1046
I. Front Centre	589	601	612	617	638
J. Fork Offset	55	55	55	50	50
Stand Over	747	771	797	827	856
Rider Height	<170	165-175	170-180	175-185	>180
Max. Tire Size	42	42	42	42	42
Rear Caliper Mount	25	25	25	25	25

MANA HANDLEBAR

Note:

MANA Bar sold separately

All dimensions are in mm unless otherwise noted

SIZE	80x469	90x480	100x491	110x502	120x513	130x524
A. Stem	80	90	100	110	120	130
B. Width at Drops	469	480	491	502	513	524
C. Width at Hoods	380	391	402	413	424	435
D. Reach	70	70	70	70	70	70
E. Drop	110	110	110	110	110	110
F. Stem Angle	7.0°	7.0°	7.0°	7.0°	7.0°	7.0°
G. Flare	12.0°	12.0°	12.0°	12.0°	12.0°	12.0°
